Prefab Steel Structure Cold Storage Logistics Warehouse H Beam Large Span Freezer Room Thermal Insulation Quick Construction

Product Categories
Luoyang Huicheng Steel Structure Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

Prefab Steel Structure Cold Storage Logistics Warehouse H Beam Large Span Freezer Room Thermal Insulation Quick Construction

MOQ : 400 square meters

Delivery Time : 20-45days

Project Solution Capability : CAD graphic design, 3D Tekla modeling design, total solution for projects,One-stop steel structure solution,Project-based supply

Purlin : C.Z Shape Steel Channel

Main Structurel Material : Q355B/ASTM A572 Gr.50/EN S355/JIS SM490

Service Life : 20-50+ Years

Certification : CE/ISO 9001/ISO 3834/ISO 14001/ISO 45001

Customization : Style / Size (Span, Height, Length) /Color / Material / Crane Capacity

Price : USD35-75 Square Meter/Negotiable

Place of Origin : Henan,China

Secondary Structurel Material : Q235B / ASTM A36/ EN S235JR / JIS SS400

Surface treatment : Hot-dip galvanized Zinc-rich primer + top coat Anti-corrosion coating

Seismic and Wind Resistance Rating : Designed according to local seismic codes/Wind：0.3-1.1 KN/㎡/81-150 mph

Supply Ability : 50000 Tons/year

Service Life Time : 50+ Years

Column and Beam : Welded H-section/Hot-rolled H-beam/Box column

Other Material : Q460 / ASTM A572 Gr.65 /EN S460 / JIS SM570

Model Number : CS001

Payment Terms : L/C,T/T,Western Union

Brand Name : HCGG

Door : Sliding/Rolling shutter/Hinged steel/Customized steel door

After-sale Service : Online Technical Support, Onsite Installation,Onsite Training,Onsite Inspection,Installation Drawings Support

Window : Aluminum alloy / PVC /Industrial louver window

Roof and Wall panel : EPS/Rock wool/PU / PIR sandwich panel,Corrugated/Trapezoidal steel sheet/Customized

Contact Now

Product Description

Our steel structure cold storage/logistics center is a professional integrated solution designed for modern cold chain logistics, integrating intelligent storage, efficient sorting, and rapid distribution. It takes high-quality steel as the core load-bearing structure, combined with advanced thermal insulation and refrigeration systems, to realize precise temperature control and safe storage of temperature-sensitive goods such as food, medicine, and aquatic products. Compared with traditional brick-concrete cold storage, it has the advantages of large space utilization, fast construction speed, strong structural stability, energy saving and environmental protection, and flexible expansion. It is widely applicable to food processing, fresh e-commerce, pharmaceutical logistics, aquatic product export and other fields, helping enterprises reduce operation costs and improve cold chain operation efficiency, and building a reliable "freshness barrier" for the whole cold chain circulation.

Prefab Steel Structure Cold Storage Logistics Warehouse H Beam Large Span Freezer Room Thermal Insulation Quick Construction

Core Structural Advantages

The main structure adopts high-strength steel such as Q235/Q355 grade H-section steel, C-shaped steel and Z-shaped steel, which has excellent tensile and compressive performance, and can easily realize a column-free span of 30-50 meters, maximizing the internal space utilization of the warehouse. The surface of the steel structure is treated with hot-dip galvanizing and professional anti-corrosion coating, which can effectively resist the erosion of high humidity and large temperature difference in the cold storage environment, avoid structural deformation and corrosion, and ensure the service life of the whole system up to 30 years and above. The light-weight steel structure design reduces the foundation load, saves the foundation construction cost, and is suitable for various complex geological conditions, with strong adaptability to the construction site.

The steel structure cold storage logistics center consists of 5 core functional structures, ensuring stable and efficient operation:

  1. Load-bearing Structure: Core skeleton, including Q235/Q355 H-section steel, C/Z-shaped steel and steel roof truss; factory-prefabricated, bolt-connected, bearing load and resisting severe weather.
  2. Enclosure Insulation Structure: Key for thermal insulation, including polyurethane sandwich panels, sealing strips and insulated doors/windows, blocking cold loss and preventing cold bridge effect.
  3. Refrigeration & Temperature Control Structure: Composed of refrigeration units, pipelines and intelligent temperature controllers, realizing stable cooling and precise temperature adjustment.
  4. Logistics Operation Structure: Includes functional area division and intelligent logistics equipment, realizing integrated operation and improving efficiency.
  5. Safety Protection Structure: Covers fire protection system, steel anti-corrosion treatment and anti-collision facilities, ensuring structure, goods and personnel safety.

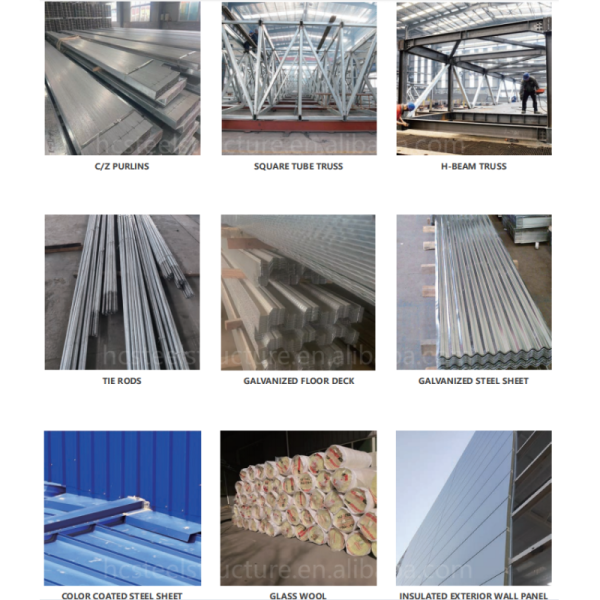

ItemsSpecification
Main Steel FrameColumnQ235, Q355 Welded H Section Steel
BeamQ235, Q355 Welded H Section Steel
Secondary FramePurlinQ235 C and Z purlin
Knee braceQ235 Angle Steel
Tie rodQ235 Circular Steel Pipe
BraceQ235 Round Bar
Vertical&Horizontal supportQ235 Angle Steel, Round Bar or Steel Pipe
Cladding SystemRoof panelEPS Sandwich Panel / Glass Fiber Sandwich Panel
Rock Wool Sandwich Panel / Pu Sandwich Panel / Steel Sheet

Wall panelEPS Sandwich Panel / Glass Fiber Sandwich Panel
Rock Wool Sandwich Panel / Pu Sandwich Panel / Steel Sheet
AccessoriesWindowAluminium Alloy Window / PVC Window
DoorSliding Sandwich Panel Door / Rolling Metal Door / Personal Door
RainspoutPVC
Other OptionsCrane 5T, 6T, 10T, 16T, 30T etc.

Prefab Steel Structure Cold Storage Logistics Warehouse H Beam Large Span Freezer Room Thermal Insulation Quick Construction

Prefab Steel Structure Cold Storage Logistics Warehouse H Beam Large Span Freezer Room Thermal Insulation Quick Construction

Applicable Scenarios

  • Food industry: storage and distribution of frozen food, aquatic products, poultry meat, dairy products, fruits and vegetables, etc.
  • Pharmaceutical industry: storage and transportation of temperature-sensitive drugs, vaccines, biological agents, etc.
  • Fresh e-commerce: integrated cold chain services such as fresh-keeping storage, sorting and distribution of online shopping fresh goods.
  • Agricultural products: pre-cooling, preservation and export transportation of agricultural and sideline products, solving the problem of difficult circulation of perishable agricultural products.
  • Third-party cold chain logistics: providing professional cold storage and distribution services for various enterprises, realizing resource sharing and cost saving.

Customization Services

We provide one-stop customization services from site selection, design, production, installation to after-sales maintenance. According to the customer's actual needs (such as construction area, storage tonnage, temperature requirements, budget, etc.), we customize the most suitable solution, and send professional engineers to the site for evaluation and guidance to ensure that the project meets the enterprise's long-term development needs. The after-sales team provides 24-hour emergency response, regular inspection and maintenance services, and solves the operation problems of the equipment in a timely manner, ensuring the stable operation of the cold storage logistics center.

Prefab Steel Structure Cold Storage Logistics Warehouse H Beam Large Span Freezer Room Thermal Insulation Quick Construction

Prefab Steel Structure Cold Storage Logistics Warehouse H Beam Large Span Freezer Room Thermal Insulation Quick Construction

Prefab Steel Structure Cold Storage Logistics Warehouse H Beam Large Span Freezer Room Thermal Insulation Quick Construction

FAQ

Q: Are you a manufacturer?
A: Yes, we have our own factory and are able to provide you with a competitive price.

Q: How to buy my ideal products?
A: You can provide us with your drawings, and we can produce according to your drawings. If you don’t have a clear plan, we can design according to your requirements and provide our plans based on local climatic conditions.

Q: Can you provide installation assistance?
A: We will provide you with detailed instruction photos and videos. If necessary, we will send professional engineers to provide construction guidance and arrange skilled workers to assist with the installation.

Q: What's the payment term?
A: 30% deposit and 70% balance before shipment.

Q: Do you accept container loading inspections?
A: Yes, you are welcome to send an inspector at any time.
